Applicable bottle types: square bottles, flat bottles, round bottles.
This case wrapping machine is widely used for secondary packaging of PET bottles, glass bottles or metal cans, and can replace cartoning machines and their ancillary equipment.
Capacity range: 35-100 packs per minute (depending on packaging specifications)
| Component | Brand |
|---|---|
| PLC | Inovance, China |
| Servo motor and control system | Inovance, China |
| Upper configuration software | Ab Optix |
| Frequency converter | Inovance, China |
| Proximity electronic switch | SICK or equivalent brand |
| Parameter | Value |
|---|---|
| Production capacity | 80 packs/minute (depending on bottle type and packaging method) |
| Carton dimensions after molding (mm) | Length: 150-420mm, Width: 130-350mm, Height: 100-335mm |
| Packing specifications | 3×4, 3×5, 4×6, 2×3, 2×4 and other configurations |
| Product diameter requirements | 48-106mm for round bottles; shortest side >52mm for square/rectangular bottles |
| Product height range | 95mm-330mm |
| Equipment dimensions (L×W×H) | 15850mm × 4050mm × 2150mm |
| Equipment weight | Approximately 11000Kg |
Inner flap forming process flow
Outer tongue forming process flow

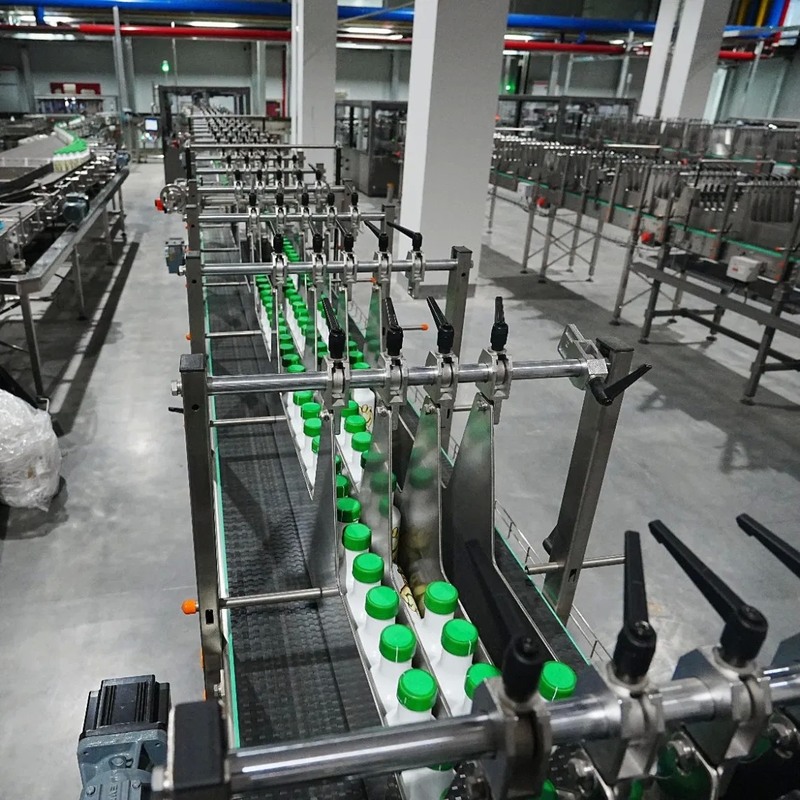

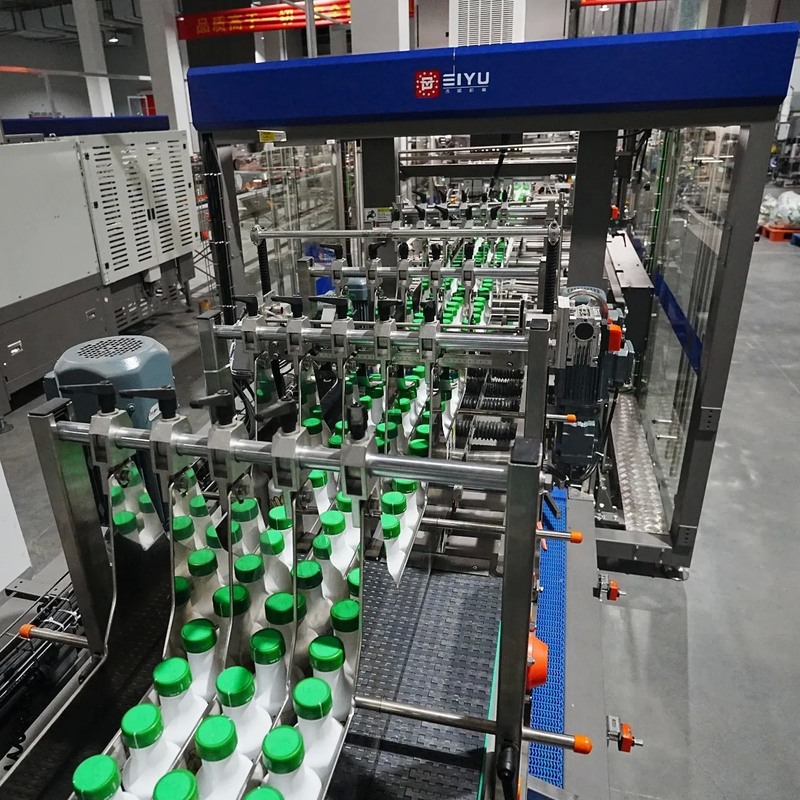

The equipment consists of rack, bottle feeding conveyor, pressure control module, product grouping system, bottle pushing parts, cardboard handling system, forming sections, and control systems.
Process flow: Cardboard is manually placed on buffer conveyor → vacuum separated → combined with grouped products → folded and sprayed to complete wrapping.
Peiyu Enterprise owns multiple subsidiaries specializing in packaging technology and machinery manufacturing. We provide complete intelligent equipment solutions for liquid and solid product packaging, including flexible packaging, cans, PET/PE/glass bottles, and aseptic cartons.
Our products serve major brands in beverages, dairy, condiments, pharmaceuticals, and cosmetics industries worldwide. We maintain ISO9001 certification and European CE certification, with advanced manufacturing facilities covering 60,000 square meters.
