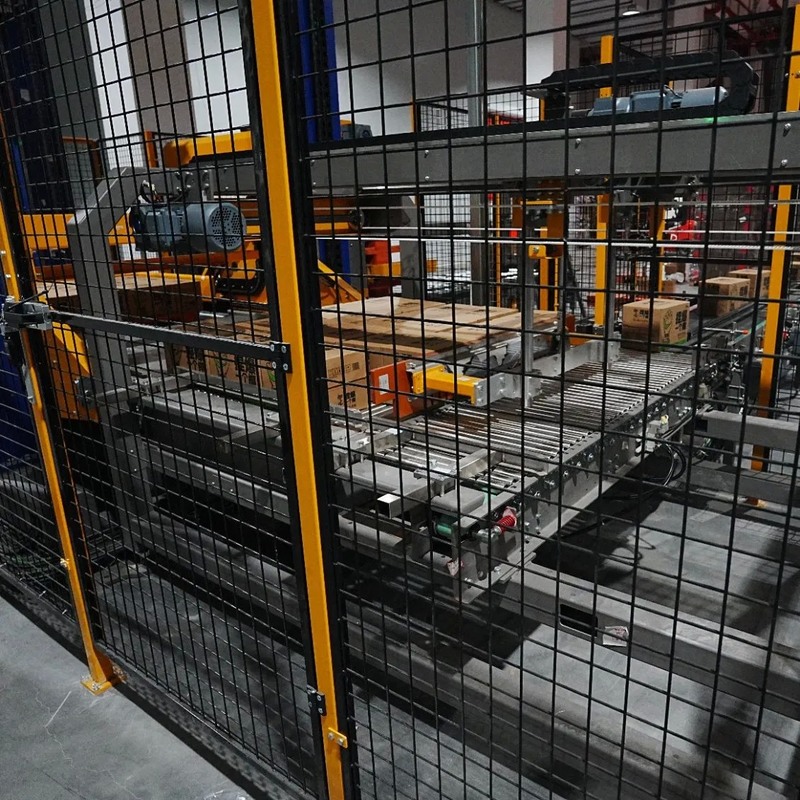

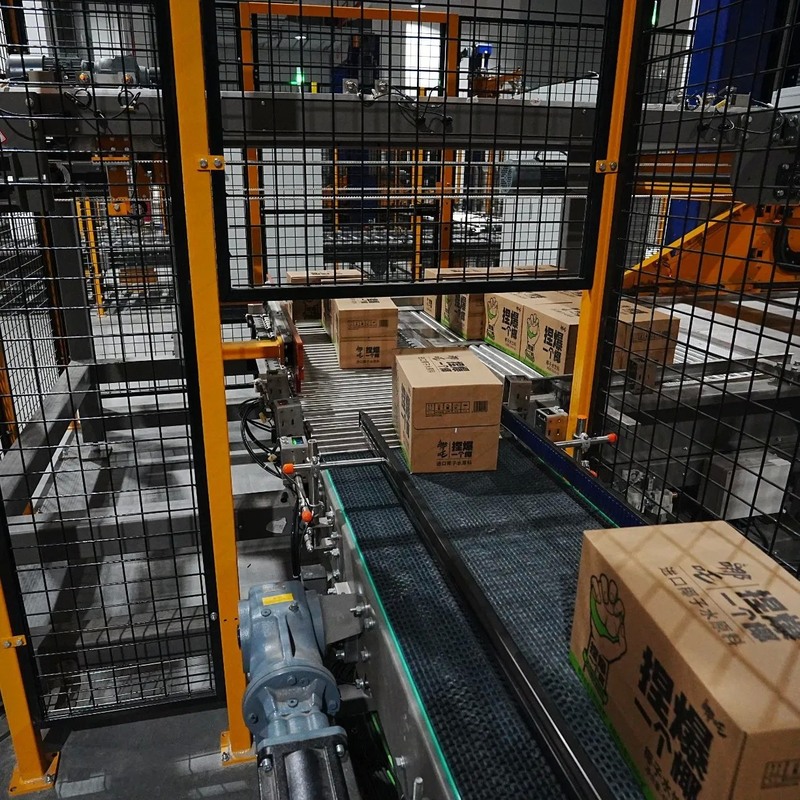

The single-column palletizing machine is composed of an acceleration belt, a steering stacking roller, a case arrangement table, a column, a beam, a pallet divider and a roller conveyor, and it is suitable for stacking various packages such as carton, plastic case, shrink film package or other packaging pieces.

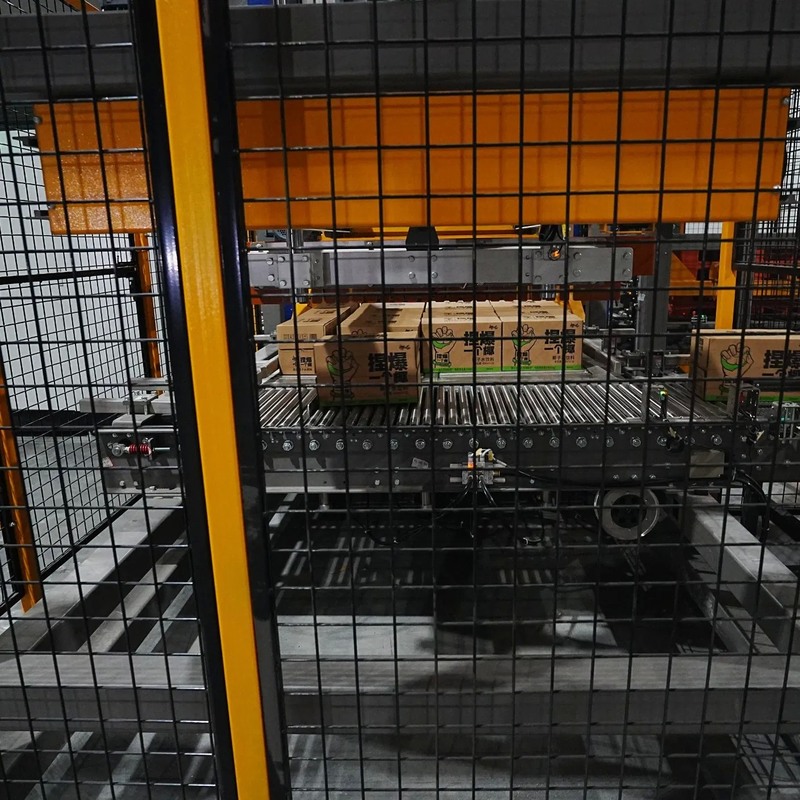

The workflow: the machine automatically stacks the cartons on the pallet layer by layer according to the pre-designed stack type. Under the combined action of single column lifting mechanical structure and pushing box structure, stacking reaches a specified height and the cartons stack is passed through the roller conveyor line moved to the forklift and transported to the warehouse for storage. This machine is controlled by PLC and touch screen, realizing high degree of automation, simple operation, easy to master, small floor space, high palletizing efficiency, low failure rate and convenient maintenance.
| Operating Mode | Stacking layer by layer | Conveyor Height | 750mm |
|---|---|---|---|
| Capacity | 60 Cartons/min | Pallet Conveyor Height | 500mm |
| Driven Type | Electric | Maximum Load Per Layer | 200kg |
| Pallet Size | Standard Pallet (as demanded) | Maximum Load Per Pallet | 1500Kg |
| Dimension | 9500*6000*3700mm | Applicable Product | Carton, Plastic case, Shrink film packaging |
| Palletizing Storage | 15 pallets | Total Power | 22KW |
| Weight | 8000kg | Transport Package | Film Packing or Wooden Case |
