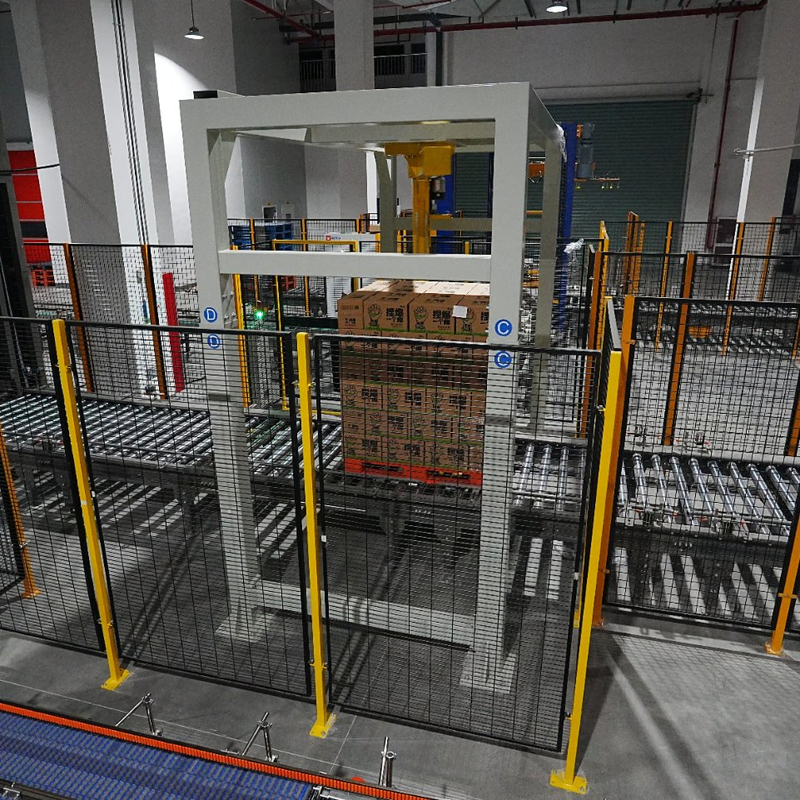

Single channel gantry palletizer can palletize the carton, plastic case, shrink film package or other packaging pieces on the pallet (wood, plastic), automatic stacking multi-layers, then automatically out and easy to forklift transported to the warehouse.
The device controlled by PLC and touch screen control pad to realize intelligent operation management, high degree of automation, simple, easy to master, and it can greatly reduce labor and reduce labor intensity. Focus on the concept of high speed, stable and save a space design. Pallet divider uses separate tray, high speed, save space. One machine multi-purpose, adjust quickly, palletizer can be used for stocking a variety of specifications products.
| Classification | Robot Loading Machine | Capacity | 40 cartons/min |
|---|---|---|---|
| Operating Mode | Stacking layer by layer | Conveyor Height | 750mm |
| Driven Type | Electric | Pallet Conveyor Height | 550mm |
| Pallet Size | Standard Pallet (as demanded) | Case Size | As demanded |
| Dimension | 8500*6000*3700mm | Applicable Product | Carton, Plastic case, Shrink film packaging |
| Palletizing Storage | 15 pallets | Total Power | 27KW |
| Weight | 8T | Transport Package | Film Packing or Wooden Case |
